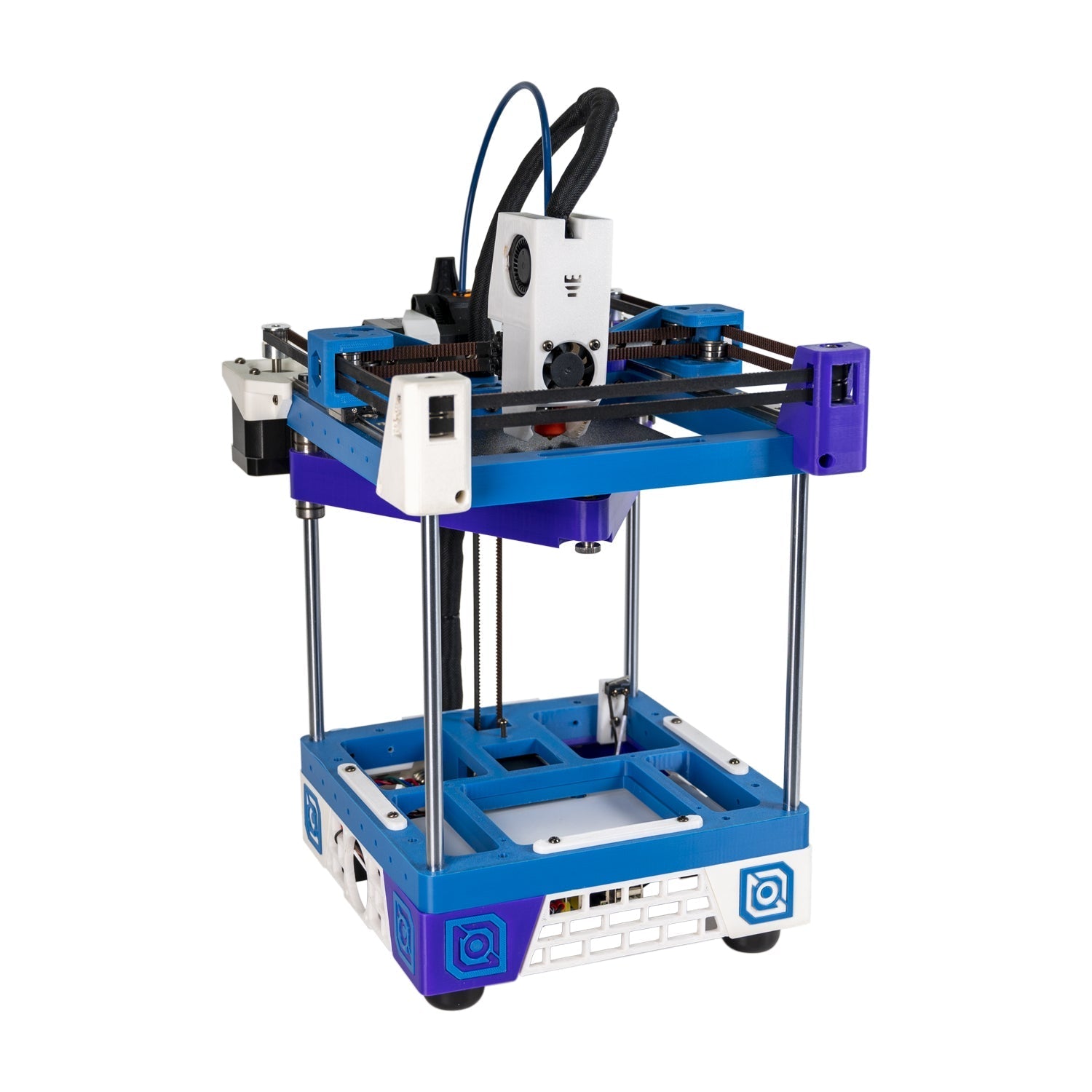

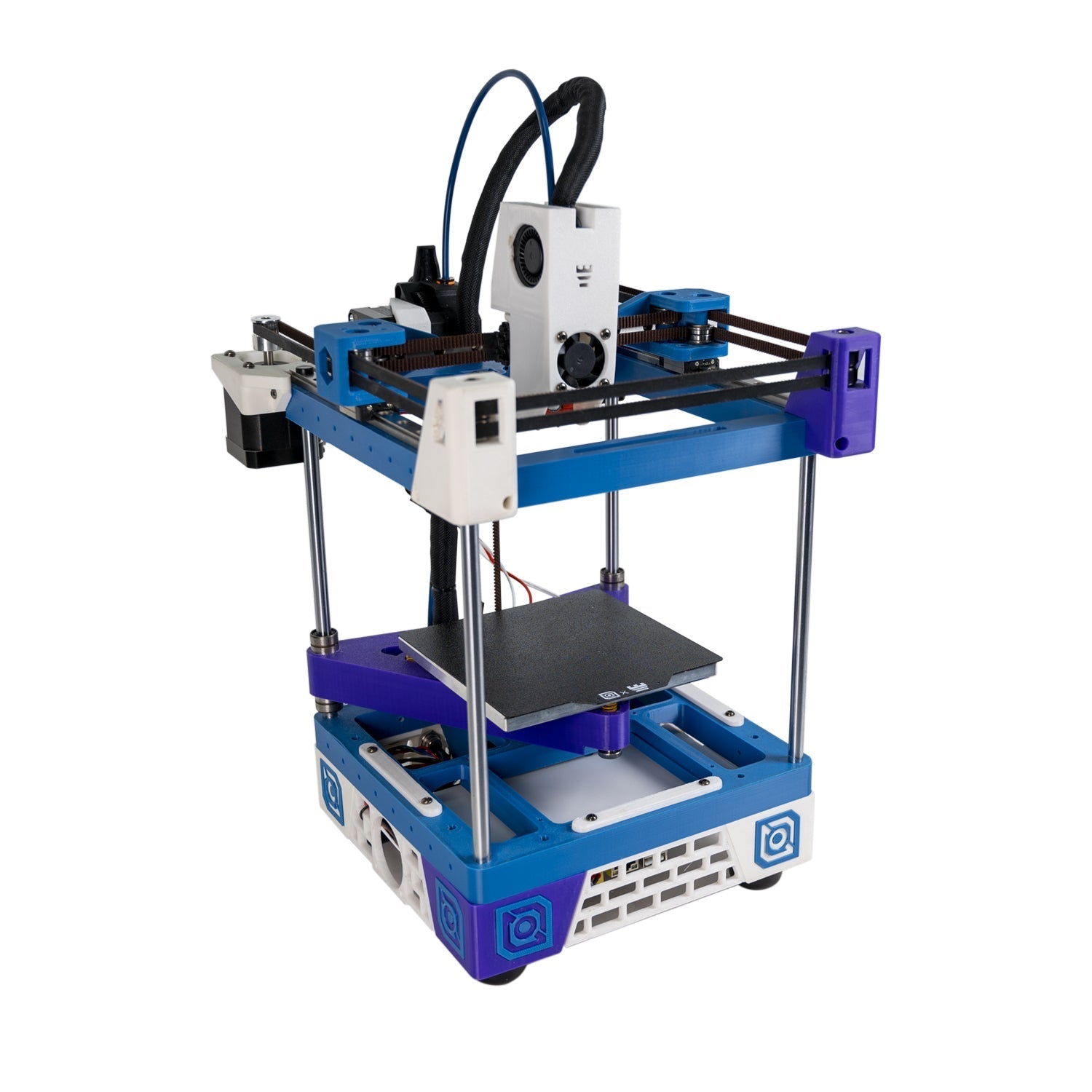

Discover the Rook MK1 3D Printer Kit by Rolohaun
Embark on a thrilling journey of creativity and innovation with the Rook MK1 3D Printer Kit. Designed for enthusiasts and newcomers alike, this printer is not just a tool but an experience that combines speed, precision, and the joy of building your own machine.
Key Features:
-

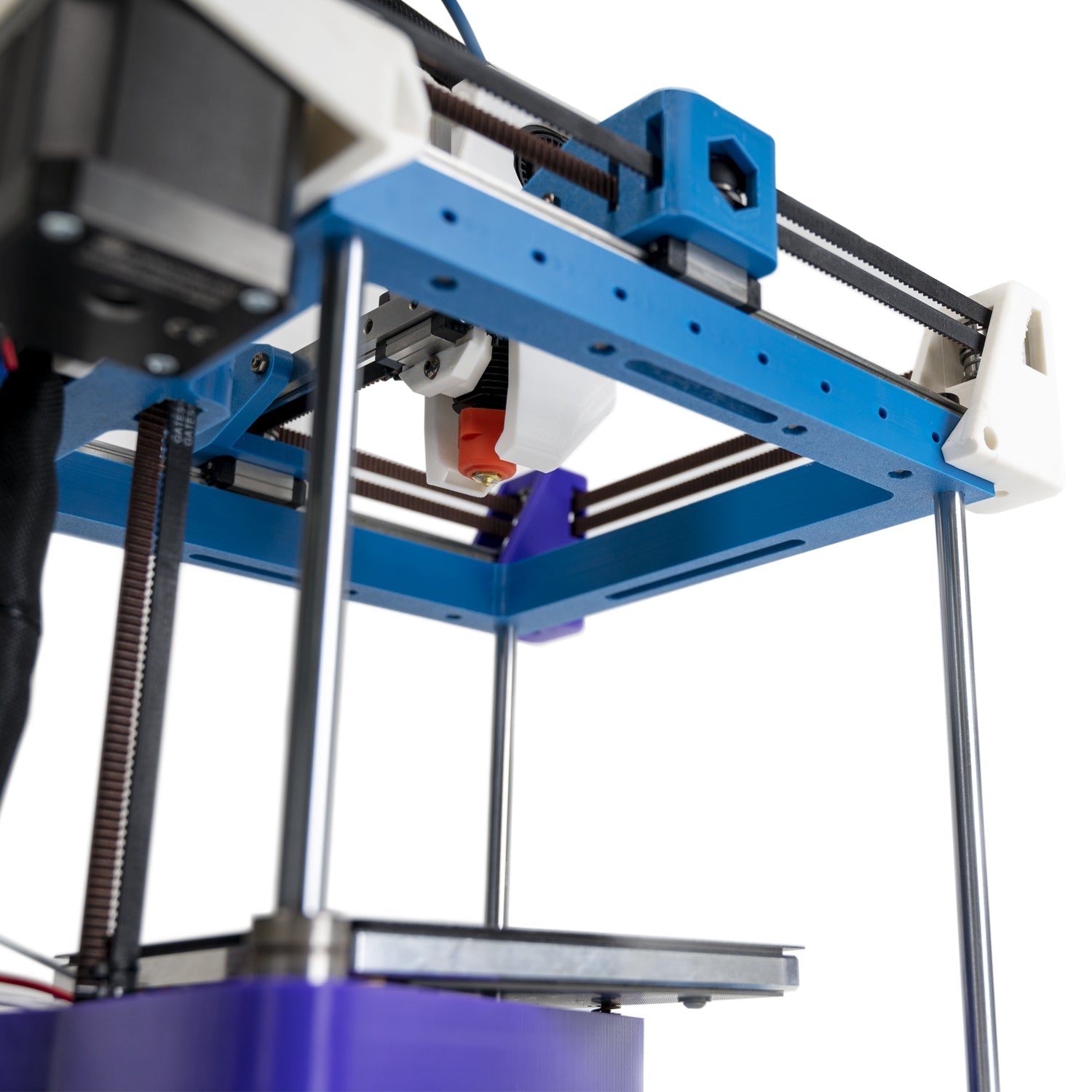

High Speed CoreXY Design: The Rook MK1 leverages a CoreXY architecture to achieve exceptional printing speeds of 150~200mm/s, ensuring quick and efficient production of your 3D models.
-
Compatible with Popular Filaments: This open-air printer excels with widely used filaments such as PLA and PETG, making it perfect for a variety of projects.
-
Complete DIY Experience: The kit includes all necessary hardware and wiring, transforming the assembly process into a delightful weekend project that you can share with friends and family.
-
Comprehensive Build Support: Access a wealth of resources, including a detailed build guide and community-driven modifications available on GitHub.
-
Expansion Options: While the default kit does not include printed parts, you have the option to purchase them separately for enhanced customization.
What’s Included:
- All essential components and hardware for assembly
- Electronics featuring the BTT M4P motherboard with TMC2209 stepper drivers
- Aluminum build plate and heating solutions for optimal performance
- Detailed list of motor kits and other vital parts to ensure smooth operation
Specifications:
-
Printing Size: 110x110x110mm
-
Max Bed Temperature: 110ºC
-
External Dimensions: 220x275x370mm after assembly
-
Weight: Gross 5.5Kg/Kit
Why Choose the Rook MK1?
Not only does the Rook MK1 3D Printer Kit offer an engaging assembly process, but it also fosters a vibrant community of modders and innovators. With the support of Rolohaun and fellow users, you have the opportunity to enhance your machine and share ideas, making every project an adventure.
Prepare for the ultimate DIY experience and unleash your creative potential with the Rook MK1 3D Printer Kit. Reserve yours today and step into the world of 3D printing!
See a build guide by Kanrog87 here if you need inspiration!
To learn more about the Rook, check out the GitHub - all STLs can be found here. We recommend also checking out some community mods, especially some of the ones created by Gulsifer.
Please note: We offer the ability to purchase Printed Parts. The default configuration does not printed parts however you can find them in the links above.
A special thanks to Rolohaun, who both designed and created the Rook as well as fostered a community of modders and innovators who have taken the designs to the next level.
Included Parts:
| Box |
Item |
Qty. |
| Motion & Fasteners |
Zip Tie |
20 |
| Open Belt, 2GT, 6mm, 4m |
1 |
| Pulley, 2GT, 20T, (5mm ID 6mm W) |
3 |
| Bearing, F695-2RS |
20 |
| Linear Bearing, 8x15x45mm |
2 |
| Rubber Foot, 4x32x22mm |
4 |
| Bowden Tube (length 1/2 meter)
|
1 |
| Machine Screw, BHCS, M2.5x4 |
4 |
| Machine Screw, BHCS, M2x10 |
2 |
| Machine Screw, BHCS, M2x12 |
2 |
| Machine Screw, BHCS, M3x5 |
4 |
| Machine Screw, BHCS, M3x6 |
24 |
| Machine Screw, BHCS, M3X10 |
44 |
| Machine Screw, BHCS, M3X12 |
6 |
| Machine Screw, BHCS, M3x16 |
17 |
| Machine Screw, BHCS, M3x18 |
4 |
| Machine Screw, BHCS, M3x20 |
8 |
| Machine Screw, BHCS, M3x30 |
5 |
| Machine Screw, BHCS, M3x40 |
8 |
| Machine Screw, BHCS, M5x16 |
24 |
| Machine Screw, BHCS, M5x25 |
9 |
| Machine Screw, BHCS, M5x30 |
7 |
| Nut, M3 |
100 |
| Shim Washer, M5X10X1mm |
32 |
| M3x4x5 Heat set Inserts for Rookery Toolhead |
2+3 |
| M3x8x5 Heat set Inserts for Rookery Toolhead |
13 |
| Set Screw, M4x4, Pre-applied Thread Lock |
8 |
| Electronics |
TMC2209 |
4 |
| SD Card, 32GB |
1 |
| Wire Sleeve (length 1 meter) |
1 |
| Cable Kit |
1 |
| Linear Rail Kit |
Linear Rail SLR9C, 200mm LDO-SLR9C-1R-200Z0 |
2 |
| Linear Rail SLR9C, 150mm LDO-SLR9C-1R-150Z1 |
1 |
| Linear Rod, 8x200mm |
4 |

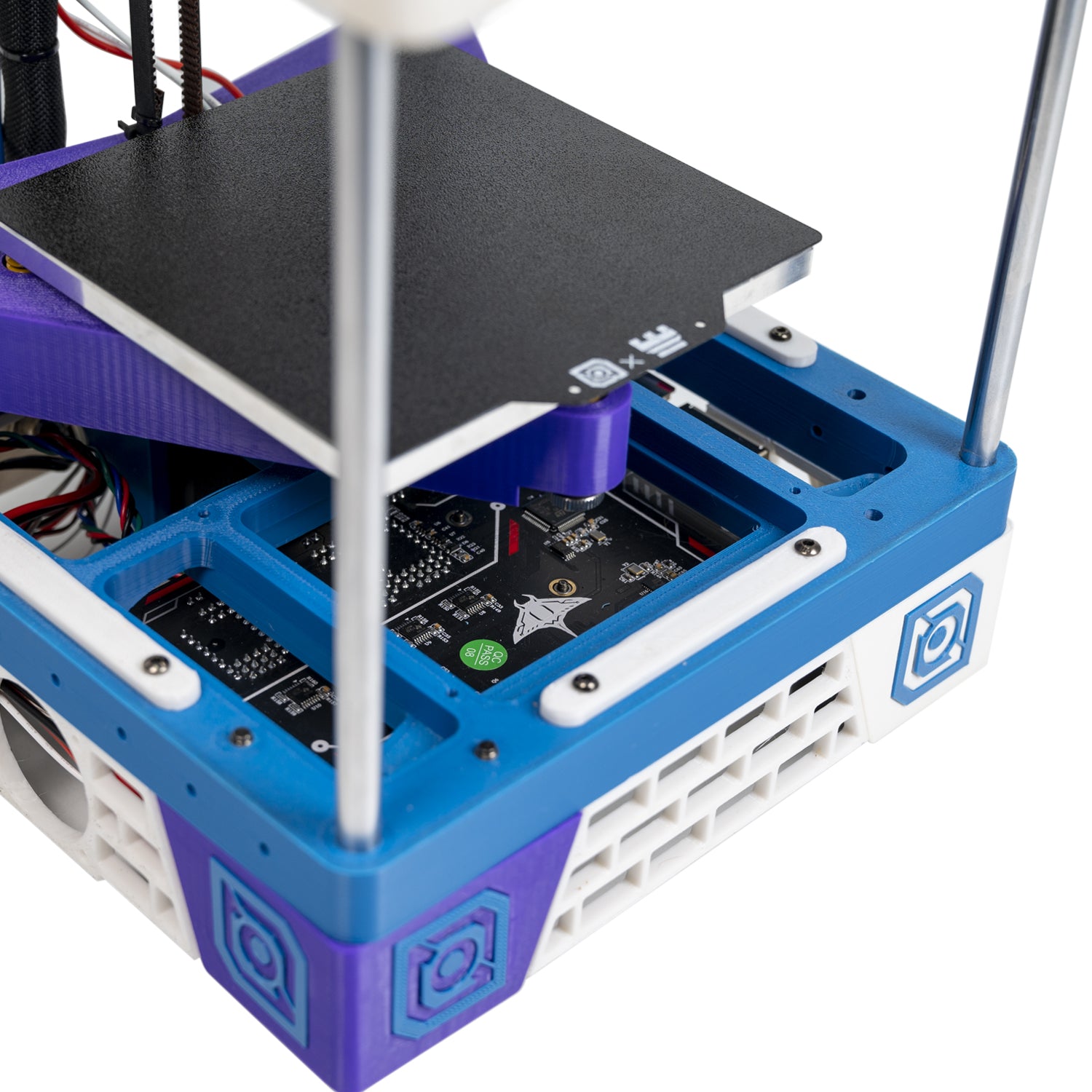

| Build Plate & Parts |
Aluminum Build Plate, 120x120mm |
1 |
| PI Film Heater (Installed), 24VDC 100W, w/ Thermal Fuse |
1 |
| Heater Cover Plate (Installed) |
1 |
| Spring Steel Flex Plate, 120x120mm, Textured |
1 |
| Magnetic Pad, 120x120mm |
1 |
| Die Springs, Yellow, 8x4x20mm |
3 |
| Knurled Nut, M3 |
3 |
| Motor Kit |
Motor E, LDO-42STH25-1004AC, 50cm cable |
1 |
| Motor Z, LDO-42STH40-1684AC(RSS), 20mm cable |
1 |
| Motor XY, LDO-42STH48-2504MAC(F), 50cm cable |
2 |
| Other |
LDO MK1 PSU, EA11811K-240 |
1 |
| Other |
Triangle-lab DDB Extruder |
1 |
| Other |
Triangle-labTR6 Hot end Ceramic Heating Core Model B |
1 |
| Other |
BTT Manta M4P V2.2 |
1 |
| Other |
BTT CB1 V2.2 |
1 |
| Other |
C13 Power Cord (Make sure to get the right type plug for your conuntry) |
1 |
Specifications:
Model LDO-MK1
Construction Core XY
Printing Size 110x110x110mm
Mother Board BTT M4P with TMC2209
Pi Board BTT CB1
Bed Temp 110ºC MAX
Compatible Filament Size 1.75mm
Hot end Triangle lab TCHC TR6 Hot end Ceramic Heating Core Model B
Printing Speed 150~200mm/s
Power Supply Brick PSU 200W with necessary certifications (UL, CUL, TUV, CB,
CE, FCC, UKCA)
Motors LDO MK1 Motor Kit, with slow dropping Z motor
Firmware Klipper
Printer External Size 220x275x370mm after assembly
Packing 350*350*170mm, Gross 5.5Kg/Kit
