E3D Revo™ High-Temperature Hotside HT / UHT (24v) PT1000 500C and 400C High-Precision
EntriesE3D Revo™ High-Temperature Hotside HT / UHT (24v) PT1000 500C and 400C High-Precision - High-Precision (HT 400C) / No Nozzle is backordered - Items typically arrive to our warehouse in 7-10 business days.
Couldn't load pickup availability
E3D Revo™ High-Temperature Hotside HT / UHT (24v) PT1000 500C and 4...
Description
Description
This uses a PT1000 thermistor capable of measuring high temperatures accurately.
These Hotside kits allow Revo users to upgrade their set-ups to enable reliable printing at higher temperatures with materials such as PEEK or PEI.
High temperature, abrasive resistance Nozzles. Much like ObXidian, HTX nozzles have a hardened steel tip and copper spreader segment to optimise the transmission of heat to the heatsink. This assembly is then coated with Chromium Nitride to provide abrasive resistance up to 500°C.
Fully customisable. Configure your ideal high temperature HotEnd. Choose between a high precision heater cartridge (up to 400C) or high temperature heater cartridge (up to 500C).
Rapid identification. HTX nozzles are grey in colour and have their sizes engraved into them with easy-to-read numbers, so there are no confusing identification markers to learn!
Please Note:
You may need to adjust your Z offset when changing nozzles.
We do not recommend the use of abrasive materials with 0.25mm nozzles. The particle size, especially with fibres, can often be larger than 0.25mm, significantly increasing the risk of clogging the nozzle.
Extension cables are not included. The revo extension cable kit can be used with chamber temperatures up to 80°C. If you require a higher operating temperature you will need to source the extension cables yourself.
⚠️ WARNING: This product can expose you to chemicals including Mineral Oils, which is known to the State of California to cause cancer, and Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
Kit includes:
Standalone Revo Hotside:
1 x HT block
1 x PT1000 sensor
1 x High precision (HT) or High Temperature (UHT) heater cartridge
1 x Revo spring

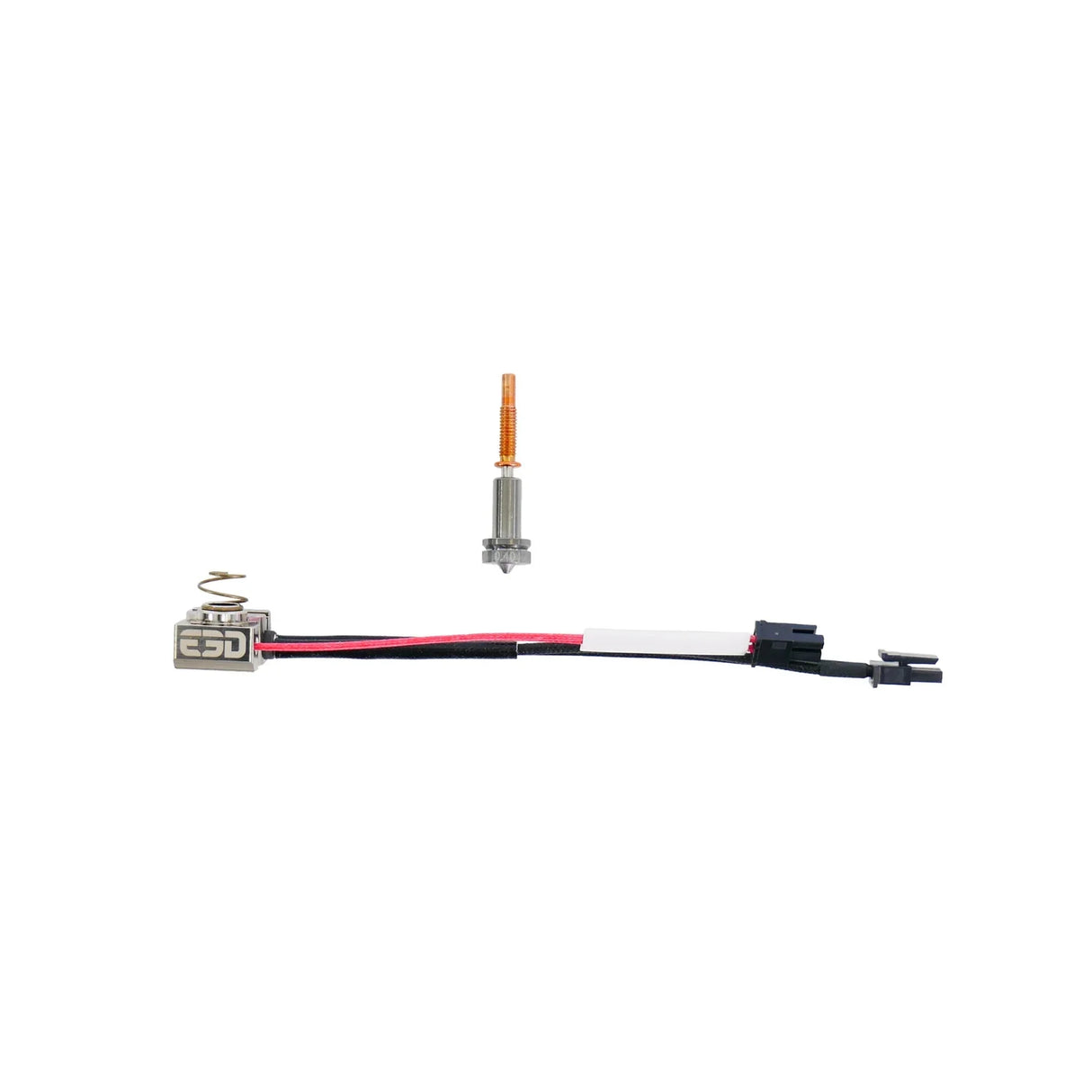

Single Nozzle Revo Hotside
1 x HT block
1 x PT1000 sensor
1 x High precision (HT) or High Temperature (UHT) heater cartridge
1 x Revo spring
1 x Revo HTX 0.4mm nozzle

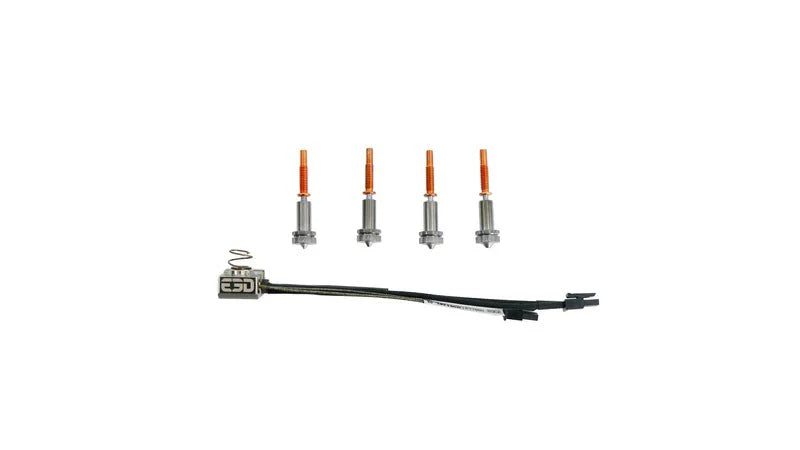

Fully Loaded Revo Hotside
1 x HT block
1 x PT1000 sensor
1 x High precision (HT) or High Temperature (UHT) heater cartridge
1 x Revo spring
1 x Revo HTX 0.25mm, 0.4mm, 0.6mm, and 0.8mm nozzles
