E3D Revo Voron PZ Probe - Piezo Bed Leveling Probe for Revo Voron Hotend

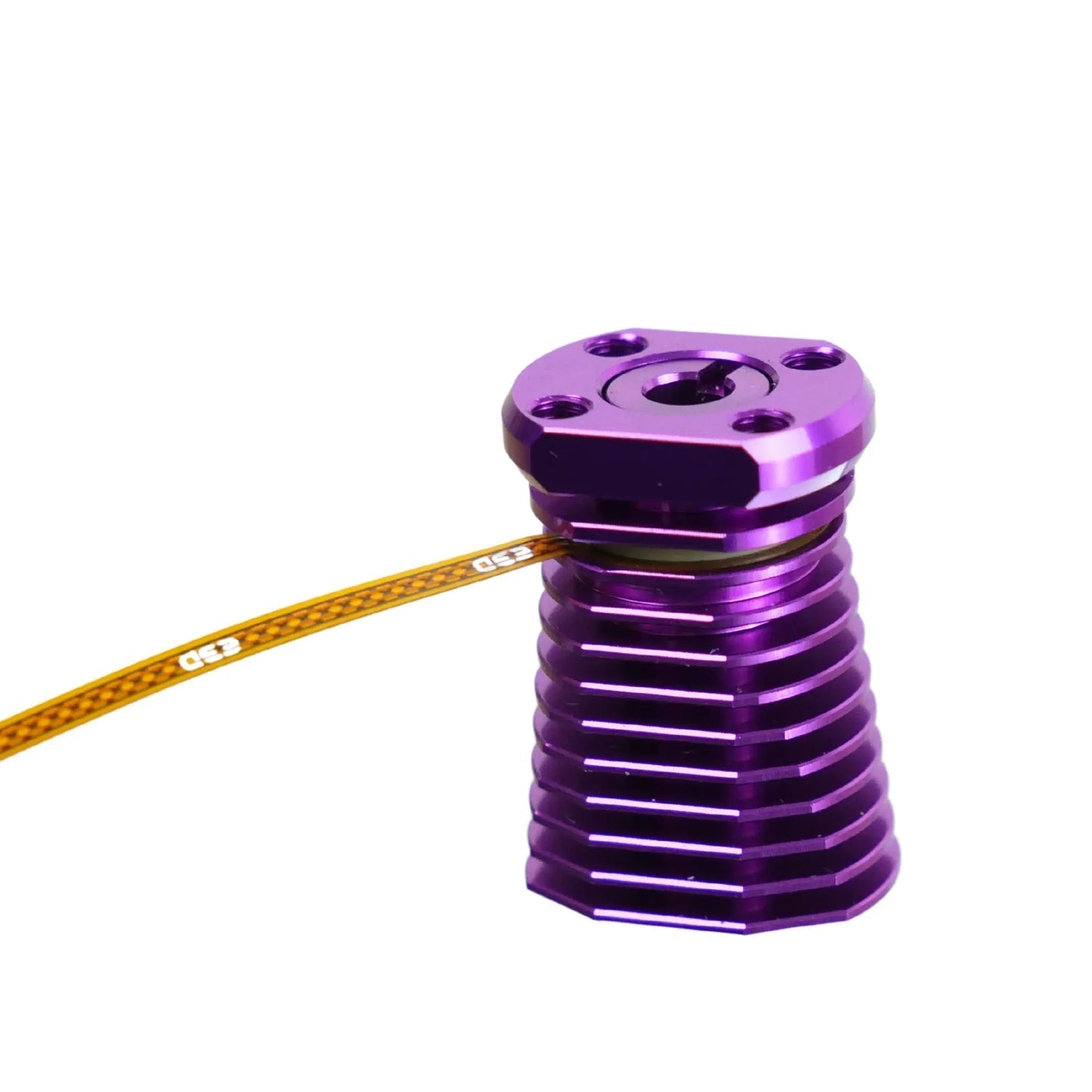

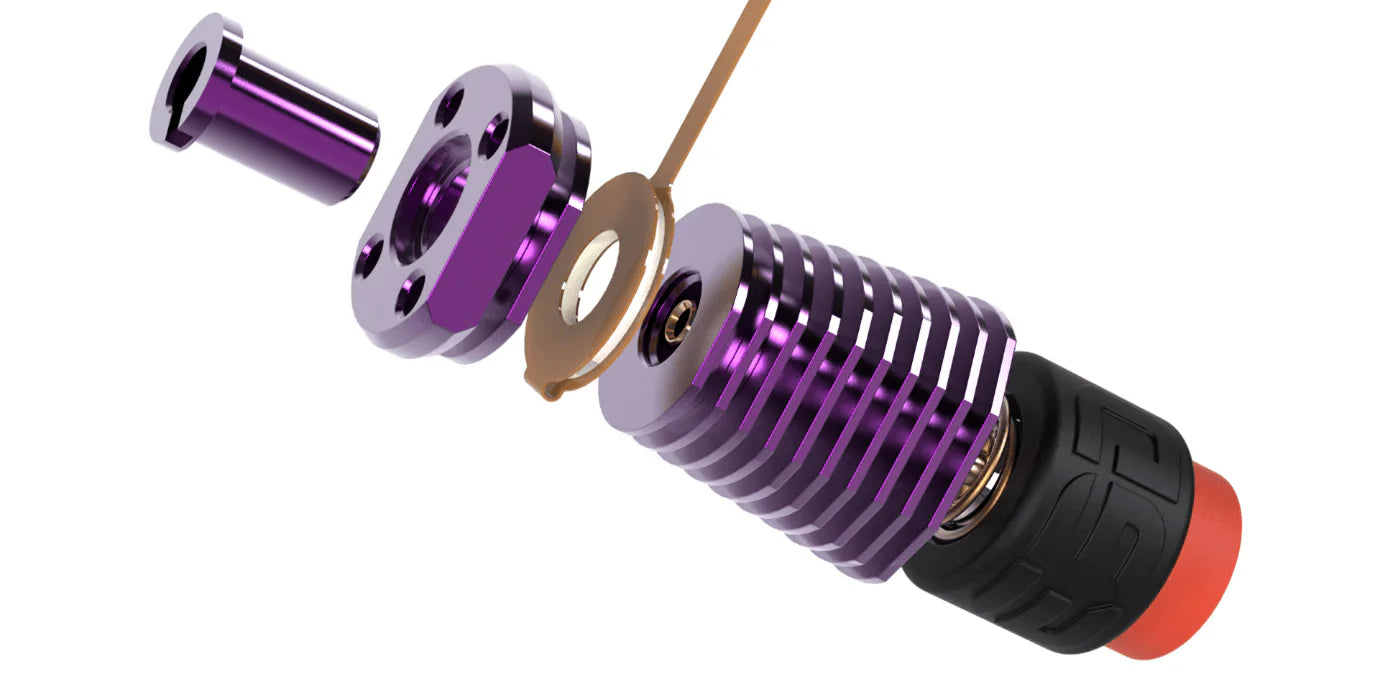

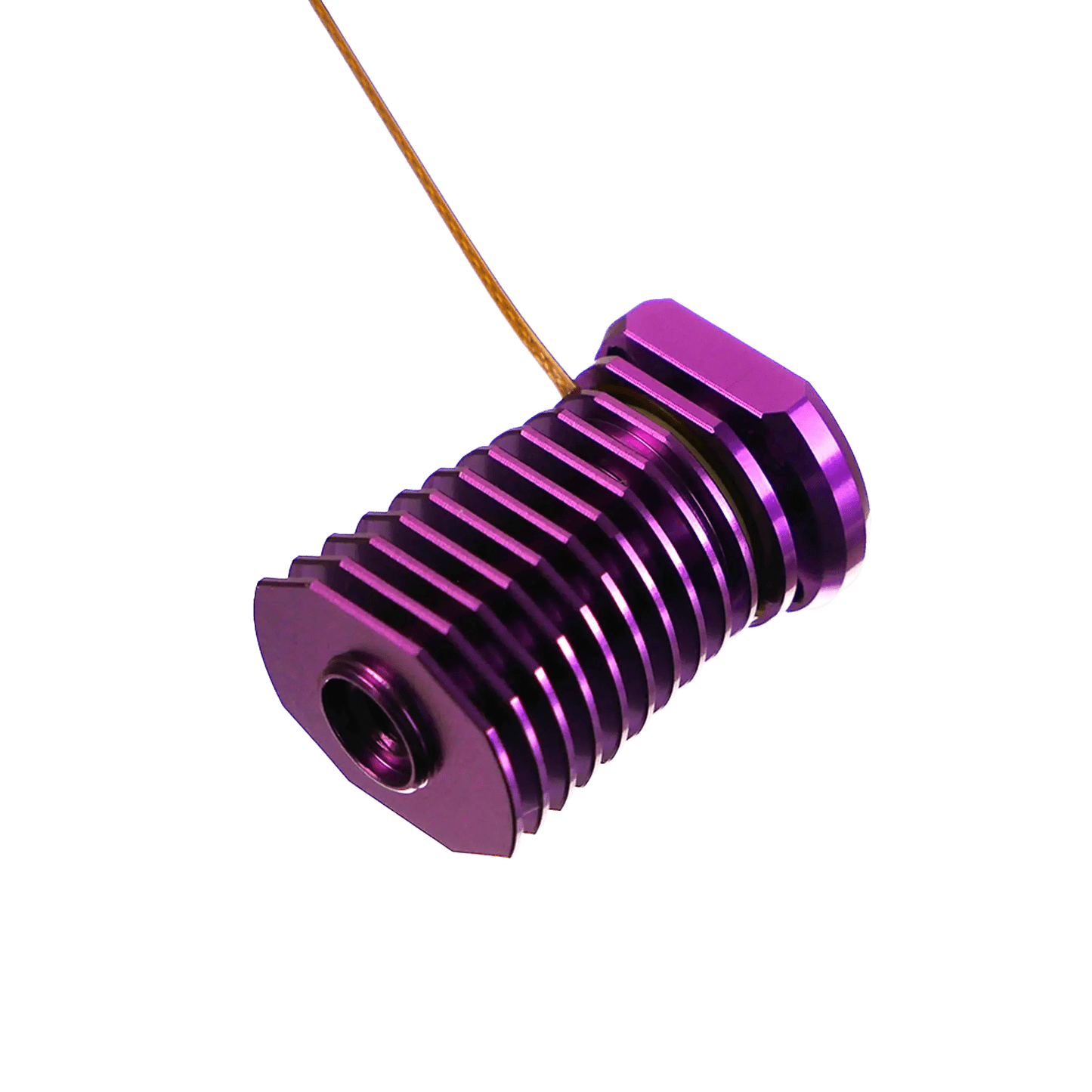

Designed specifically for use with the Voron Stealthburner, Revo PZ Probe™ Voron integrates a bed levelling system inside a Revo Voron Heatsink, transforming your Revo nozzle into a bed probe – all within the same form factor.

 Unboxing Video by LeeMerie3D!

Full Installation and klipper configuration video!

Easy PZ Probing

PZ Probe is a piezoelectric element which converts vibrations into electrical signals and is triggered upon contact between the nozzle and the print bed. With PZ Probe you only need to calibrate your z offset onceto accommodate for flexibility in your motion system, after that simply screw in (with only your fingers) a new nozzle, and PZ Probe does all the hard work for you…. Easy PZ!

Lightweight

Weighing in under 40g including the heatsink & cables, PZ Probe ensures that this set-up is significantly lighter than any other Stealthburner tool head and bed levelling sensor combo.

Perfect first layer

Using the Revo nozzle as probe ensures a precise bed levelling mesh, leading to a clean first layer, the pre-requisite of any successful 3D print.

Easy Integration

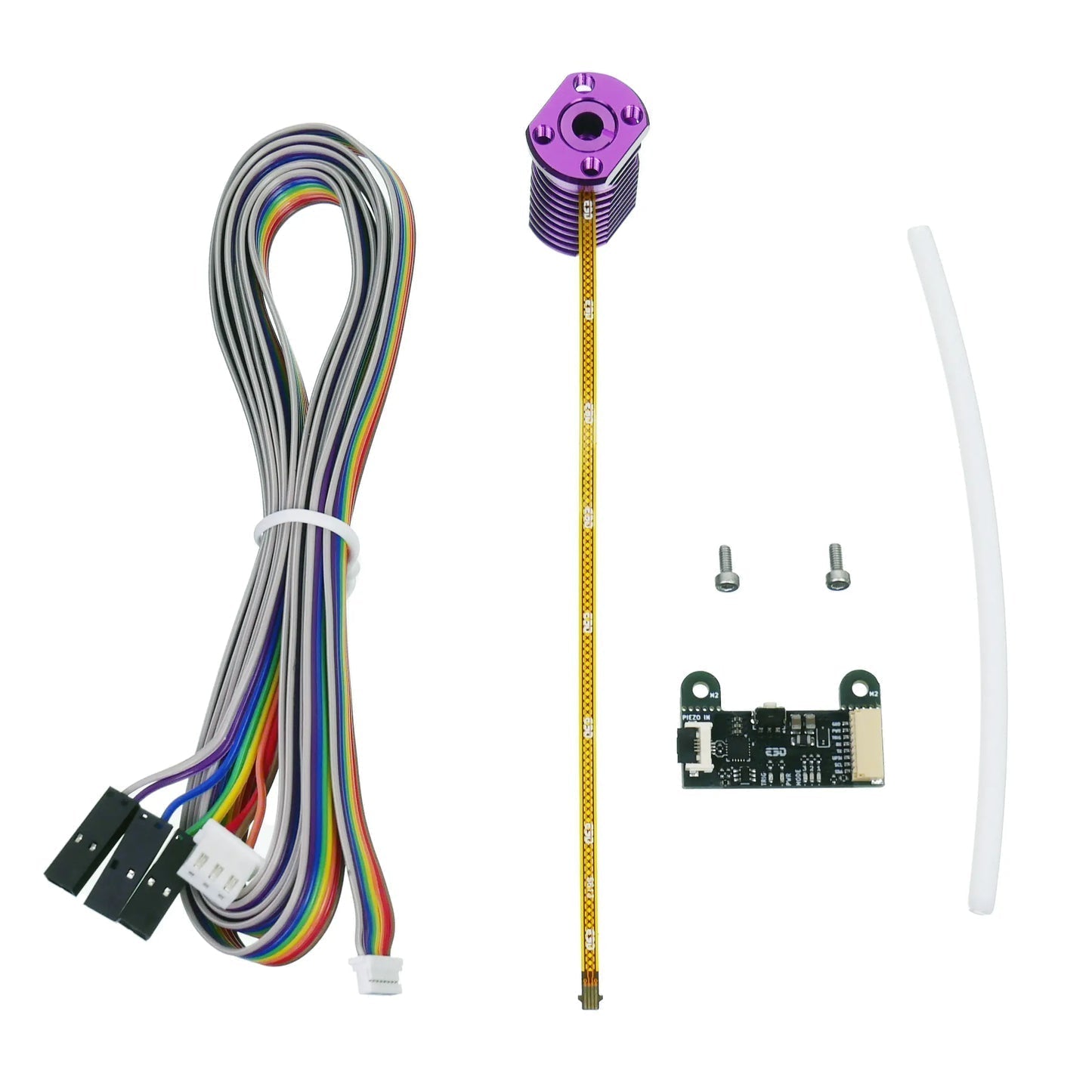

The only new part to add to your existing Stealthburner set-up is a Flat Flex Cable, read more here about this super simple step. Check out SteveBuilds mount here, note that you will need 2 extra printed parts if you opt for this mount.

Read more technical information in E3D's blog.

Compatibility: Revo PZ Probe Voron is compatible with Voron Stealth burner.

Please note: Make sure to read the technical datasheet in its entirety prior to installing the PZ Probe.

Pair with your perfect Hotside (Hotsides are here)

Pair your Revo Voron Coldside with one of our carefully curated Hotside packs to ensure your printing needs are met, straight out of the box. All Hotside packs come with your heating and sensing elements plus a variety of nozzles for you to start quick swapping with. Select from the following options:  

Starter - Ideal for users printing at standard speeds with PLA, PETG and ASA  

High Flow - Perfect if you're looking to push your Voron printer's print speed capabilities to the limit  

High Flow X - All the benefits of the High Flow pack with the bonus of abrasive resistance for printing with fibre filled materials  

Genius 400 - A hobbyist’s playground: high temperature, high flow and abrasive printing in one kit

Genius Metal - The ultimate hobbyist’s playground
