LDO Motors 42STH48-2804AH & 2804AH(S55) / AC Super Speedy / Super Power High Temp NEMA 17 Stepper Motor - High Performance High Temperature (Normal and S55)
EntriesLDO Motors 42STH48-2804AH & 2804AH(S55) / AC Super Speedy / Super Power High Temp NEMA 17 Stepper Motor - High Performance High Temperature (Normal and S55) - C Class (Standard) (AC) is backordered - Items typically arrive to our warehouse in 7-10 business days.
Couldn't load pickup availability
LDO Motors 42STH48-2804AH & 2804AH(S55) / AC Super Speedy / Sup...
Description
Description

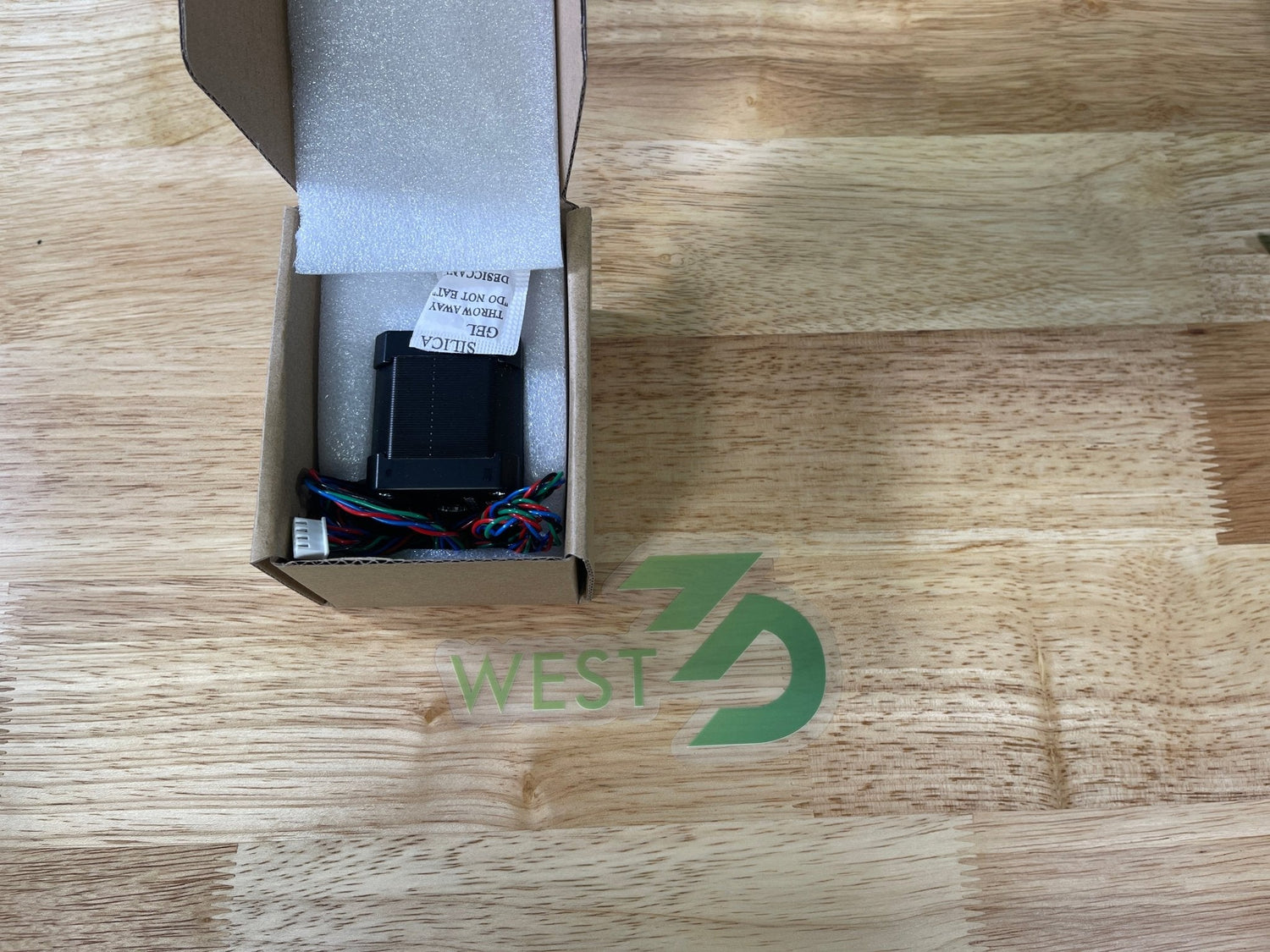

This is a super big boy, made for the highest speed of speedy applications. This motor comes with a 1 meter wire terminated with a 4 pin JST-XH connector. We carry these in AH (high temp) and AC (standard class).
This is an evolution of the 2504 speedy motors, with greater holding torque and a higher power rating (2.8 vs 2.5a).
- NEMA 17.
- 1.8° Step Angle.
- 200 Steps Per Revolution.
- 2.8 Amp
- 420mN-m Holding Torque.
- 48mm Body.
- 24mm Output Shaft (5mm diameter) (S55 version has a 55mm Output Shaft)
Please note: These are categorized as "high temperature" motors, they have a higher insulation class than standard motors and are intended to perform better at higher currents and higher ambient temperatures. However running at or near full amperage in environments higher than 40C will impact longevity. We generally recommend for higher temperature environments to lower your amperage to increase the life of the motor.
Technical Specifications can be viewed here.
